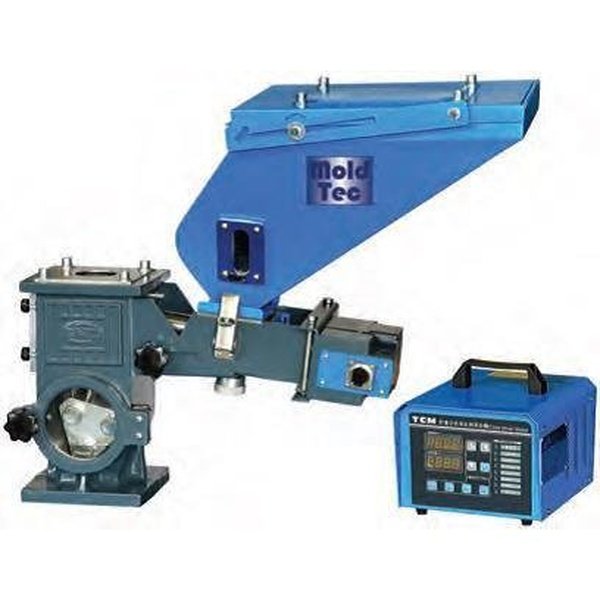

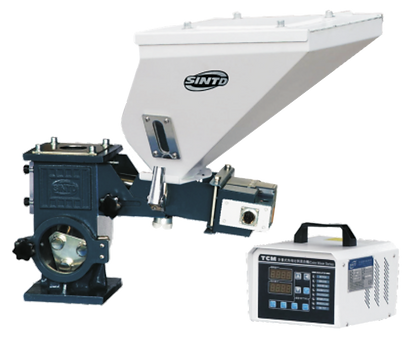

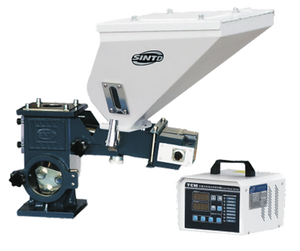

TCM-30-16 Volumetic Doser
Description
Introduction;
The TCM series of volumetric dosers are suitable for auto-proportional mixing of new material, regrind, master batch and additives.
A brushless Dc motor is used in this series.
The microprocessor accurately controls rotation of the high precise dosing screws to squeeze out materials with an accuracy of -+ 1% from set point.

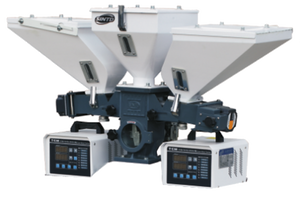

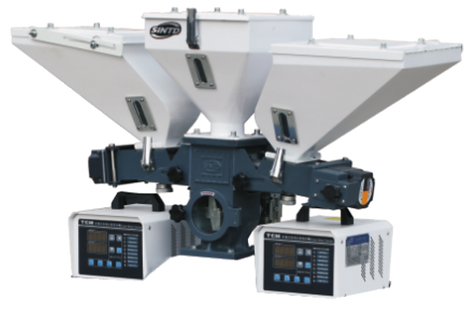

A gear motor with deceleration ratio 30:1 or 100:1 is coupled with a dosing screw of 6 models with output ranging from 0.1 ‚32kg/hr. double colour doser can be supplied to match with 2 single colour doser if required.
Features:
- Data and setting storage.
- Maintenance free DC motor. Microprocessor controlled.
- External signals can be directly interfaced with the control box. Durable chrome-plated screws.
- Modular construction allows for ease of cleaning.
- Hopper magnet fitted to base of single colour doser.
- Main material hopper is a standard accessory for double colour doser. It is optional colour use.
|
Model |
TCM – 30 – 16 |
|
Motor power (kw) |
0.06 |
|
Rev(r.p.m) |
0-3000 |
|
Mixer power (kw) |
0.09 |
|
Screw OD. (mm) |
16 |
|
Output (kg/hr) |
1.1-32 |
|
Storage bin(L) |
10 |
|
Gear ratio |
30:1 |
|
DIMENSIONS |
  |
|
H(mm) |
580 |
|
W(mm) |
530 |
|
D(mm) |
290 |
|
Weight(kg) |
29 |
