Lenzke Clamp MQ100 (to 60kN)

Original price £260.72 - Original price £999.00
Original price
£999.00
£260.72 - £999.00
Current price £999.00
Description

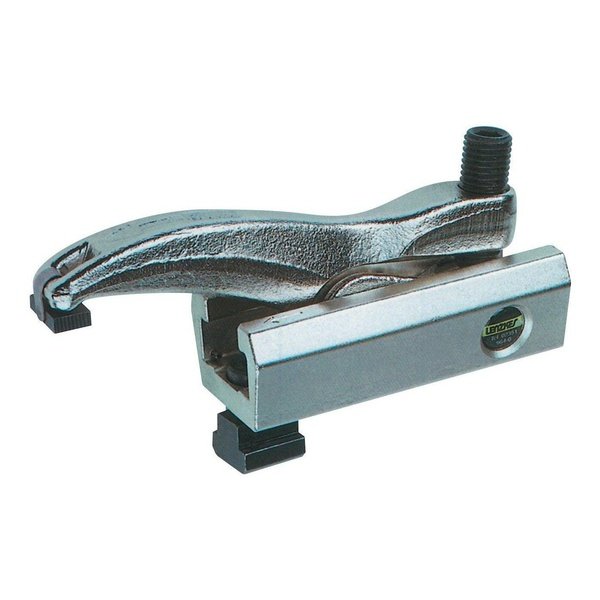

Lenzke Clamp MQ100 (to 60kN)

  • Patented stepless adjustment
  • Strong Clamping pressure for small clamping torque
  • Flexible and adjustable at every angle to the T slot
  • Reduction of set-up time through reliable, fast and safe clamping
  • Vertically highly adjustable through triple clamping shoe
  • Widely adjustable clamping heights through stackable clamping shoe

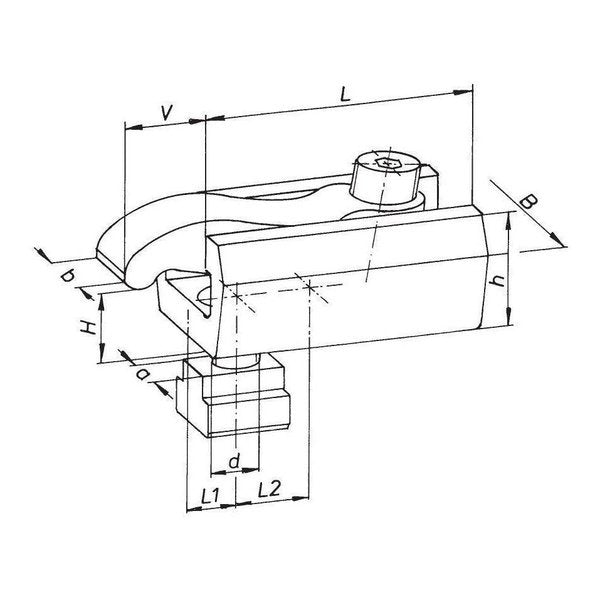

Thread Slot a H Comments Part no Price £ Quantity
M12 14 0-48mm V=82, L=95, L1=12, L2=20, B=52, b=24, h=37, kN=32 100-048-1214 999.00
M12 14 5-68mm V=112, L=135, L1=12, L2=28, B=52, b=24, h=37, kN=30 100-067-1214 999.00
M16 18 0-55mm V=95, L=110, L1=15, L2=25, B=60, b=28, h=42, kN=40 100-055-1618 999.00
M16 18 6-80mm V=135, L=155, L1=15, L2=32, B=60, b=28, h=42, kN=43 100-078-1618 260.72
M20 22 0-62mm V=110, L=125, L1=19, L2=32, B=75, b=34, h=48, kN=45 100-062-2022 999.00
M20 22 7-90mm V=159, L=175, L1=19, L2=38, B=75, b=34, h=48, kN=49 100-088-2022 999.00
M24 28 8-80mm V=125, L=150, L1=22, L2=38, B=88, b=42, h=57, kN=55 100-077-2428 346.86
M24 28 8-105mm V=182, L=205, L1=22, L2=45, B=88, b=42, h=57, kN=60 100-100-2428 369.50
M30 36 8-80mm V=128, L=150, L1=25, L2=-, B=88, b=42, h=57, kN=55 100-077-3036 350.40
M30 36 8-105mm V=185, L=205, L1=25, L2=45, B=88, b=42, h=57, kN=60 100-100-3036 468.00
Thread
Slot a
H
M12
14
0-48mm
100-048-1214
£999.00
M12
14
5-68mm
100-067-1214
£999.00
M16
18
0-55mm
100-055-1618
£999.00
M16
18
6-80mm
100-078-1618
£260.72
M20
22
0-62mm
100-062-2022
£999.00
M20
22
7-90mm
100-088-2022
£999.00
M24
28
8-80mm
100-077-2428
£346.86
M24
28
8-105mm
100-100-2428
£369.50
M30
36
8-80mm
100-077-3036
£350.40
M30
36
8-105mm
100-100-3036
£468.00
M12 14 0-48mm 100-048-1214 999.00
M12 14 5-68mm 100-067-1214 999.00
M16 18 0-55mm 100-055-1618 999.00
M16 18 6-80mm 100-078-1618 260.72
M20 22 0-62mm 100-062-2022 999.00
M20 22 7-90mm 100-088-2022 999.00
M24 28 8-80mm 100-077-2428 346.86
M24 28 8-105mm 100-100-2428 369.50
M30 36 8-80mm 100-077-3036 350.40
M30 36 8-105mm 100-100-3036 468.00
Additional Details
Thread Slot a H
M12 14 0-48mm
M12 14 5-68mm
M16 18 0-55mm
M16 18 6-80mm
M20 22 0-62mm
M20 22 7-90mm
M24 28 8-80mm
M24 28 8-105mm
M30 36 8-80mm
M30 36 8-105mm
