Metalmec Removable Tip Nozzles

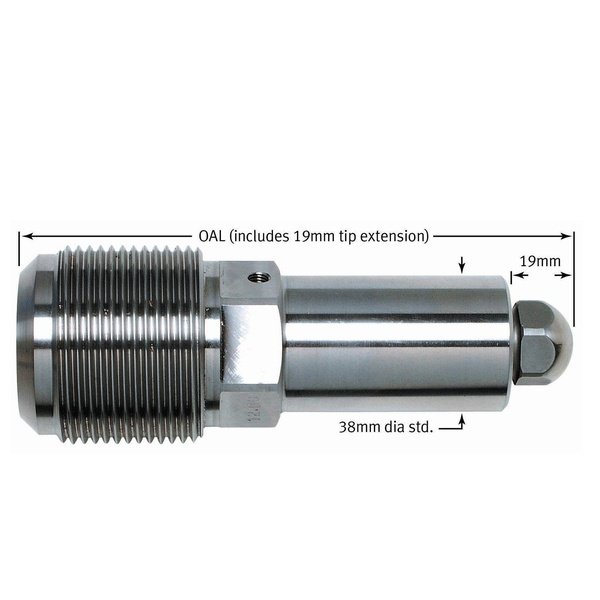

Metalmec Nozzle Body

Nozzle body with thread to suit your machine. 1¹/₂" body diameter accepts standard heater bands and ⁷/₈"-14 female thread at front to accept removable nozzle tips. Pre heat-treated steel machined to suit the thread of your machine and accept standard low-cost replacement tips.

Any size or specification made to your requirements. Simply find your machine thread below for part number:
To order special nozzles, or sizes not shown above, click here or please call sales office 01536 206653

Thread	R/O	Part No	Machine Model
38x2	38mm	MZ	Penta
50x3	35mm	MFG	Modula 100 screw sizes 28 32 36 40 45 50 55 60 65 75
58x2	50mm	MK	14SR
65x2.5	45mm	MFB
70x3	50mm	MFF	180SR 400/1200 Taper seat
70x3	56mm	MFD	270/280 Pentatron
80x3	65mm	MFE	Penta
