Shackle - Shackles

Shackles

£6.34 - £94.60
£6.34
£6.34 - £94.60
£6.34
Description

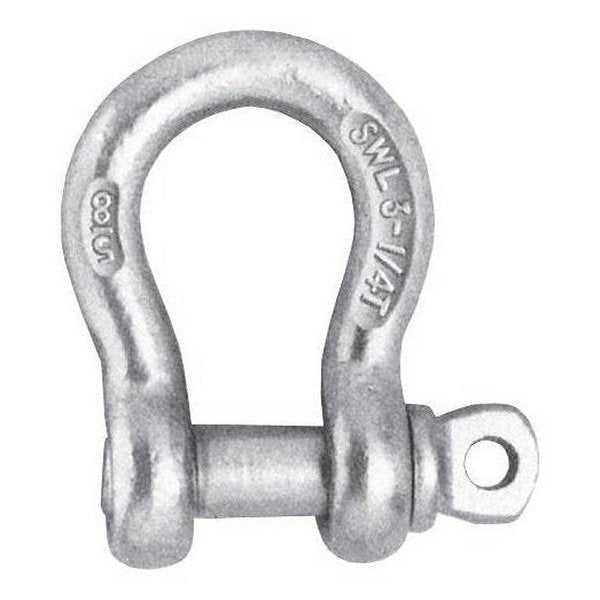

Shackles for lifting moulds

  • Premium screw pin shackles
  • Carbon shackle, Alloy pin
  • Heat treated & tempered, 5:1 Safety Factor
  • Test certificate available.

Capacities and dimensions shown are standard but may vary.
Specify required capacity if critical.

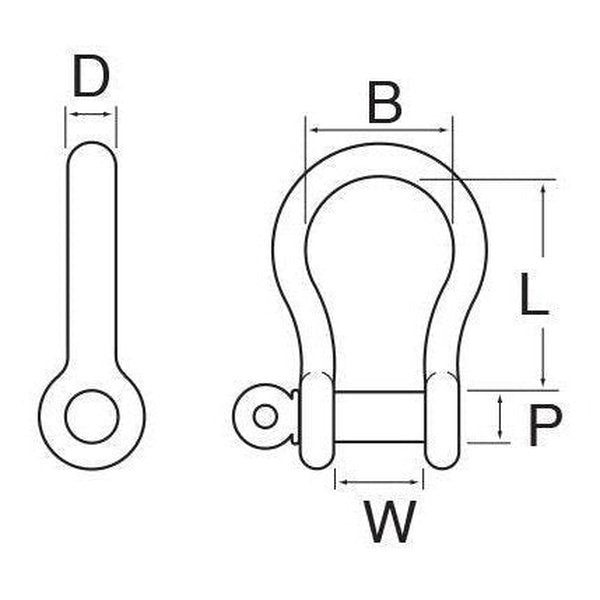

Capacity (T) Width (W) Length (L) Comments Part no Price £ Quantity
1 11 16mm B=26mm, D=10.7, P=11 LS38 6.34
2 16 22mm B=32mm, D=13.4, P=16 LS50 9.41
3.3 19 26mm B=43mm, D=16.3, P=19 LS63 11.86
4.8 22 31mm B=51mm, D=19, P=22 LS75 14.17
6.5 25 36mm B=58mm, D=22, P=25 LS88 21.91
8.5 28 43mm B=68mm, D=25, P=28 LS100 30.53
9.5 32 47mm B=75mm, D=28, P=32 LS113 38.41
12 35 51mm B=83mm, D=32, P=35 LS125 53.17
13.5 - - LS138 67.73
17 - - LS150 94.60
Capacity (T)
Width (W)
Length (L)
1
11
16mm
LS38
£6.34
2
16
22mm
LS50
£9.41
3.3
19
26mm
LS63
£11.86
4.8
22
31mm
LS75
£14.17
6.5
25
36mm
LS88
£21.91
8.5
28
43mm
LS100
£30.53
9.5
32
47mm
LS113
£38.41
12
35
51mm
LS125
£53.17
13.5
-
-
LS138
£67.73
17
-
-
LS150
£94.60
1 11 16mm LS38 6.34
2 16 22mm LS50 9.41
3.3 19 26mm LS63 11.86
4.8 22 31mm LS75 14.17
6.5 25 36mm LS88 21.91
8.5 28 43mm LS100 30.53
9.5 32 47mm LS113 38.41
12 35 51mm LS125 53.17
13.5 - - LS138 67.73
17 - - LS150 94.60
Additional Details
Capacity (T) Width (W) Length (L)
1 11 16mm
2 16 22mm
3.3 19 26mm
4.8 22 31mm
6.5 25 36mm
8.5 28 43mm
9.5 32 47mm
12 35 51mm
13.5 - -
17 - -
