Nozzle Tip - GP 38mm Long Nozzle Tip

GP 38mm Long Nozzle Tip

£0
£16.08 - £16.08
£16.08
£16.08 - £16.08
£16.08
Description

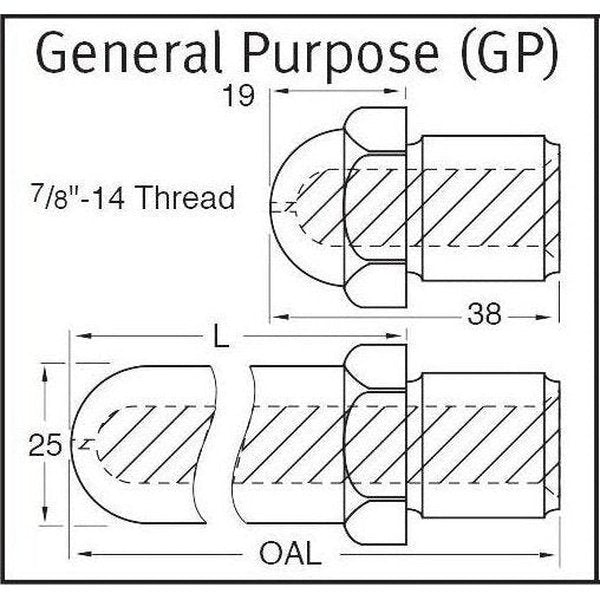

Hardened Chrome Steel General Purpose 38mm Nozzle tips
For general-purpose applications, a good, all-round flow path with smooth internal flow characteristics and minimal restriction to ensure minimum back-pressure.
  • 38mm length (including thread)
  • 48/52 rc Hardened chrome vanadium tungsten tool steel
  • 7/8"-14 thread for use in all regular removable tip nozzles
  • Available with any combination or radius and orifice
  • Available in nickel copper for improved heat transfer
  • Smooth polished internal bore improves flow
  • Polished radius for improved seal with bushing
radius orifice Comments Part no Price £ Quantity
12.7mm 1.5mm Length 38mm, Radius: 12.7mm, Orifice: 1.5mm GP15I 16.08
12.7mm 2.5mm Length 38mm, Radius: 12.7mm, Orifice: 2.5mm GP15J 16.08
12.7mm 3mm Length 38mm, Radius: 12.7mm, Orifice: 3mm GP15K 16.08
12.7mm 4mm Length 38mm, Radius: 12.7mm, Orifice: 4mm GP15L 16.08
12.7mm 5mm Length 38mm, Radius: 12.7mm, Orifice: 5mm GP15M 16.08
12.7mm 6mm Length 38mm, Radius: 12.7mm, Orifice: 6mm GP15N 16.08
12.7mm 8mm Length 38mm, Radius: 12.7mm, Orifice: 8mm GP15O 16.08
12.7mm 9.5mm Length 38mm, Radius: 12.7mm, Orifice: 9.5mm GP15P 16.08
15mm 1.5mm Length 38mm, Radius: 15mm, Orifice: 1.5mm GP16I 16.08
15mm 2.5mm Length 38mm, Radius: 15mm, Orifice: 2.5mm GP16J 16.08
15mm 3mm Length 38mm, Radius: 15mm, Orifice: 3mm GP16K 16.08
15mm 4mm Length 38mm, Radius: 15mm, Orifice: 4mm GP16L 16.08
15mm 5mm Length 38mm, Radius: 15mm, Orifice: 5mm GP16M 16.08
15mm 6mm Length 38mm, Radius: 15mm, Orifice: 6mm GP16N 16.08
15mm 8mm Length 38mm, Radius: 15mm, Orifice: 8mm GP16O 16.08
15mm 9.5mm Length 38mm, Radius: 15mm, Orifice: 9.5mm GP16P 16.08
19mm 1.5mm Length 38mm, Radius: 19mm, Orifice: 1.5mm GP17I 16.08
19mm 2.5mm Length 38mm, Radius: 19mm, Orifice: 2.5mm GP17J 16.08
19mm 3mm Length 38mm, Radius: 19mm, Orifice: 3mm GP17K 16.08
19mm 4mm Length 38mm, Radius: 19mm, Orifice: 4mm GP17L 16.08
19mm 5mm Length 38mm, Radius: 19mm, Orifice: 5mm GP17M 16.08
19mm 6mm Length 38mm, Radius: 19mm, Orifice: 6mm GP17N 16.08
19mm 8mm Length 38mm, Radius: 19mm, Orifice: 8mm GP17O 16.08
19mm 9.5mm Length 38mm, Radius: 19mm, Orifice: 9.5mm GP17P 16.08
35mm 1.5mm Length 38mm, Radius: 35mm, Orifice: 1.5mm GP18I 16.08
35mm 2.5mm Length 38mm, Radius: 35mm, Orifice: 2.5mm GP18J 16.08
35mm 3mm Length 38mm, Radius: 35mm, Orifice: 3mm GP18K 16.08
35mm 4mm Length 38mm, Radius: 35mm, Orifice: 4mm GP18L 16.08
35mm 5mm Length 38mm, Radius: 35mm, Orifice: 5mm GP18M 16.08
35mm 6mm Length 38mm, Radius: 35mm, Orifice: 6mm GP18N 16.08
35mm 8mm Length 38mm, Radius: 35mm, Orifice: 8mm GP18O 16.08
35mm 9.5mm Length 38mm, Radius: 35mm, Orifice: 9.5mm GP18P 16.08
flat 1.5mm Length 38mm, Radius: flat, Orifice: 1.5mm GP10I 16.08
flat 2.5mm Length 38mm, Radius: flat, Orifice: 2.5mm GP10J 16.08
flat 3mm Length 38mm, Radius: flat, Orifice: 3mm GP10K 16.08
flat 4mm Length 38mm, Radius: flat, Orifice: 4mm GP10L 16.08
flat 5mm Length 38mm, Radius: flat, Orifice: 5mm GP10M 16.08
flat 6mm Length 38mm, Radius: flat, Orifice: 6mm GP10N 16.08
flat 8mm Length 38mm, Radius: flat, Orifice: 8mm GP10O 16.08
flat 9.5mm Length 38mm, Radius: flat, Orifice: 9.5mm GP10P 16.08
radius
orifice
12.7mm
1.5mm
GP15I
£16.08
12.7mm
2.5mm
GP15J
£16.08
12.7mm
3mm
GP15K
£16.08
12.7mm
4mm
GP15L
£16.08
12.7mm
5mm
GP15M
£16.08
12.7mm
6mm
GP15N
£16.08
12.7mm
8mm
GP15O
£16.08
12.7mm
9.5mm
GP15P
£16.08
15mm
1.5mm
GP16I
£16.08
15mm
2.5mm
GP16J
£16.08
15mm
3mm
GP16K
£16.08
15mm
4mm
GP16L
£16.08
15mm
5mm
GP16M
£16.08
15mm
6mm
GP16N
£16.08
15mm
8mm
GP16O
£16.08
15mm
9.5mm
GP16P
£16.08
19mm
1.5mm
GP17I
£16.08
19mm
2.5mm
GP17J
£16.08
19mm
3mm
GP17K
£16.08
19mm
4mm
GP17L
£16.08
19mm
5mm
GP17M
£16.08
19mm
6mm
GP17N
£16.08
19mm
8mm
GP17O
£16.08
19mm
9.5mm
GP17P
£16.08
35mm
1.5mm
GP18I
£16.08
35mm
2.5mm
GP18J
£16.08
35mm
3mm
GP18K
£16.08
35mm
4mm
GP18L
£16.08
35mm
5mm
GP18M
£16.08
35mm
6mm
GP18N
£16.08
35mm
8mm
GP18O
£16.08
35mm
9.5mm
GP18P
£16.08
flat
1.5mm
GP10I
£16.08
flat
2.5mm
GP10J
£16.08
flat
3mm
GP10K
£16.08
flat
4mm
GP10L
£16.08
flat
5mm
GP10M
£16.08
flat
6mm
GP10N
£16.08
flat
8mm
GP10O
£16.08
flat
9.5mm
GP10P
£16.08
12.7mm 1.5mm GP15I 16.08
12.7mm 2.5mm GP15J 16.08
12.7mm 3mm GP15K 16.08
12.7mm 4mm GP15L 16.08
12.7mm 5mm GP15M 16.08
12.7mm 6mm GP15N 16.08
12.7mm 8mm GP15O 16.08
12.7mm 9.5mm GP15P 16.08
15mm 1.5mm GP16I 16.08
15mm 2.5mm GP16J 16.08
15mm 3mm GP16K 16.08
15mm 4mm GP16L 16.08
15mm 5mm GP16M 16.08
15mm 6mm GP16N 16.08
15mm 8mm GP16O 16.08
15mm 9.5mm GP16P 16.08
19mm 1.5mm GP17I 16.08
19mm 2.5mm GP17J 16.08
19mm 3mm GP17K 16.08
19mm 4mm GP17L 16.08
19mm 5mm GP17M 16.08
19mm 6mm GP17N 16.08
19mm 8mm GP17O 16.08
19mm 9.5mm GP17P 16.08
35mm 1.5mm GP18I 16.08
35mm 2.5mm GP18J 16.08
35mm 3mm GP18K 16.08
35mm 4mm GP18L 16.08
35mm 5mm GP18M 16.08
35mm 6mm GP18N 16.08
35mm 8mm GP18O 16.08
35mm 9.5mm GP18P 16.08
flat 1.5mm GP10I 16.08
flat 2.5mm GP10J 16.08
flat 3mm GP10K 16.08
flat 4mm GP10L 16.08
flat 5mm GP10M 16.08
flat 6mm GP10N 16.08
flat 8mm GP10O 16.08
flat 9.5mm GP10P 16.08
