Clamps And Accessories - Lenzke Clamp MQ60 (to 80kN)

Lenzke Clamp MQ60 (to 80kN)

£133.59 - £999.00
£133.59
£133.59 - £999.00
£133.59
Description

Lenzke Clamp MQ60 (to 80kN)

  • Patented stepless adjustment
  • Strong Clamping pressure for small clamping torque
  • Flexible and adjustable at every angle to the T slot
  • Reduction of set-up time through reliable, fast and safe clamping
  • Vertically highly adjustable through triple clamping shoe
  • Widely adjustable clamping heights through stackable clamping shoe

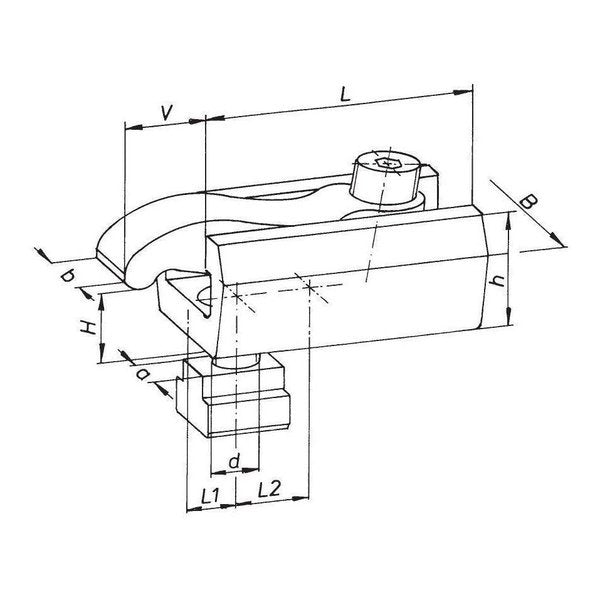

Thread Slot a H Comments Part no Price £ Quantity
M12 14 5-34mm V=38, L=75, L1=12, L2=20, B=52, b=24, h=37, kN=40 060-034-1214 133.59
M12 14 22-45mm V=34, L=75, L1=12, L2=20, B=52, b=24, h=37, kN=40 060-045-1214 138.40
M12 14 5-40mm V=58, L=115, L1=12, L2=28, B=52, b=24, h=37, kN=40 060-040-1214 160.46
M12 14 35-67mm V=58, L=115, L1=12, L2=28, B=52, b=24, h=37, kN=40 060-067-1214 168.00
M16 18 6-38mm V=45, L=85, L1=15, L2=25, B=60, b=28, h=42, kN=55 060-038-1618 999.00
M16 18 6-58mm V=80, L=130, L1=15, L2=32, B=60, b=28, h=42, kN=55 060-058-1618 175.86
M20 22 5-35mm V=49, L=100, L1=19, L2=32, B=75, b=34, h=48, kN=65 060-035-2022 241.85
M20 22 28-55mm V=49, L=100, L1=19, L2=32, B=75, b=34, h=48, kN=65 060-055-2022 205.66
M20 22 8-68mm V=88, L=150, L1=19, L2=38, B=75, b=34, h=48, kN=65 060-068-2022 241.23
M20 22 45-85mm V=78, L=150, L1=19, L2=38, B=75, b=34, h=48, kN=65 060-085-2022 238.32
M24 28 10-46mm V=66, L=125, L1=22, L2=38, B=88, b=42, h=57, kN=80 060-046-2428 272.93
M24 28 15-80mm V=105, L=180, L1=22, L2=45, B=88, b=42, h=57, kN=80 060-082-2428 999.00
M30 36 10-46mm V=69, L=125, L1=25, L2=45, B=88, b=42, h=57, kN=80 060-046-3036 298.73
M30 36 15-80mm V=108, L=180, L1=25, L2=45, B=88, b=42, h=57, kN=80 060-080-3036 999.00
