Quick Change System
Original price
£0.00
-
Original price
£0.00
Original price
£0.00
£0.00
-
£0.00
Current price
£0.00
Description
Quick Change EOAT system can apply to any robot in your facility. Benefits are that the system is a one-time investment, plus this system reduces the amount of time taken to change end of arm tooling.

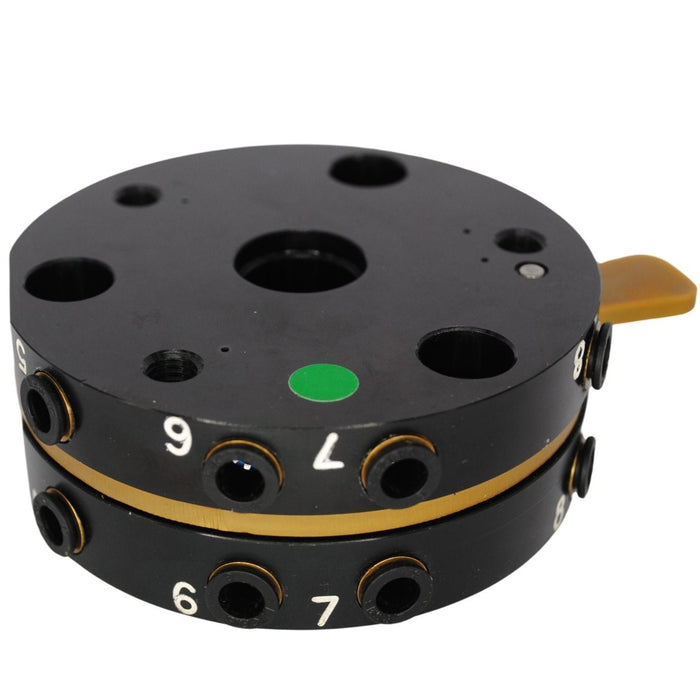

The male unit is permanently attached to the robot wrist and connected with the pneumatic supplies from the robot, the female unit is permanently fixed to the gripper with the pipe work from the gripper plugged straight into the plug-in connectors that are mounted on the outside diameter.
No bolts, Alan keys or spanners are required for the quick release unit.

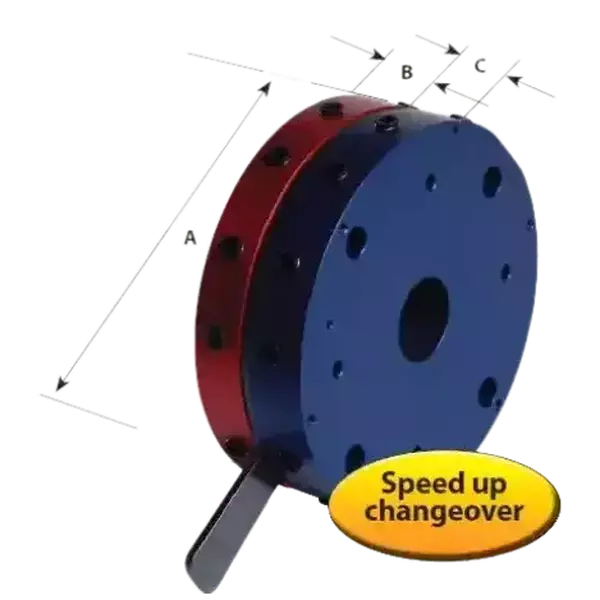

QR Type | Part | A | B | C | Weight | Loading |
QR Complete Light Duty | ET-000803-497 | 90mm | 34mm | 14mm | 0.57kg | 30kg |
QR-R Light Duty Robot Side | ET-000803-367 | 90mm | 20mm | - | 0.35kg | - |
QR G Light Duty Gripper Side | ET-000803-368 | 90mm | - | 14mm | 0.22kg | - |
QR Complete Heavy Duty | ET-800706-000 | 160mm | 20mm | 20mm | 2.40kg | 50kg |
QR - R Robot Side Heavy Duty | ET-800706-100 | 160mm | 20mm | - | 1.50kg | - |
QR - G Gripper Side Heavy Duty | ET-800706-200 | 160mm | - | 20mm | 0.08kg | - |
Electrical Connector (Fits QR-R Male Half) | ET-000803-368-02 | - | - | - | 0.02kg | - |
Electrical Connector (Fits QR-G Female Half) | ET-000803-367-01 | - | - | - | 0.02kg | - |
