Clamps And Accessories - Mould Clamp Sets- Closed Toe

Mould Clamp Sets - Closed Toe

£25.51 - £62.10
£25.51
£25.51 - £62.10
£25.51
Description

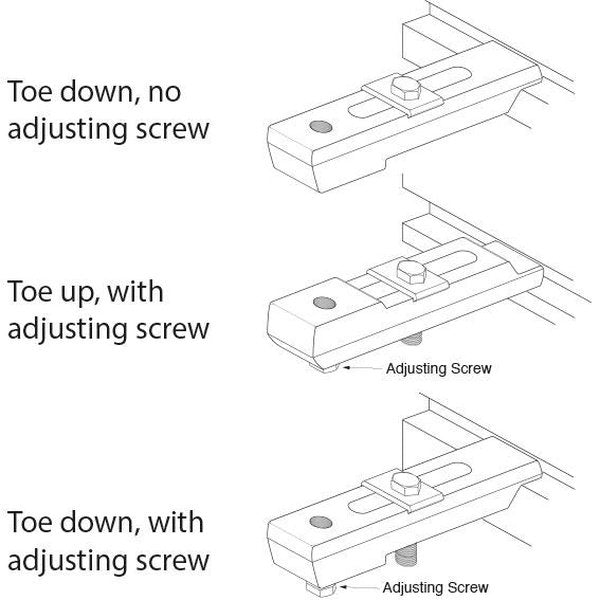

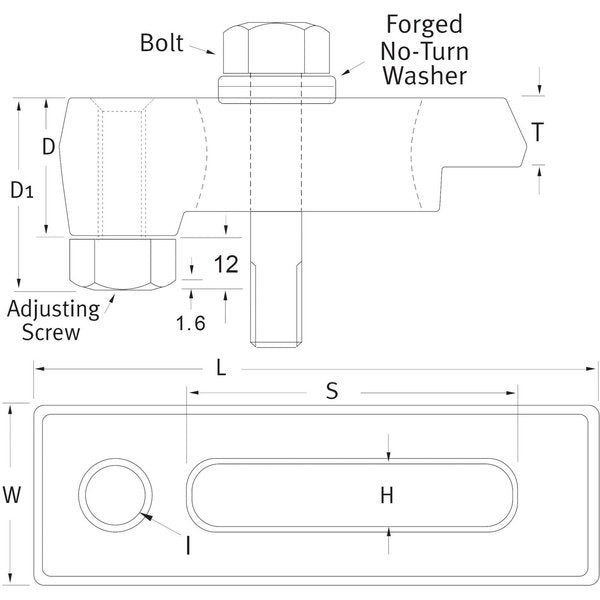

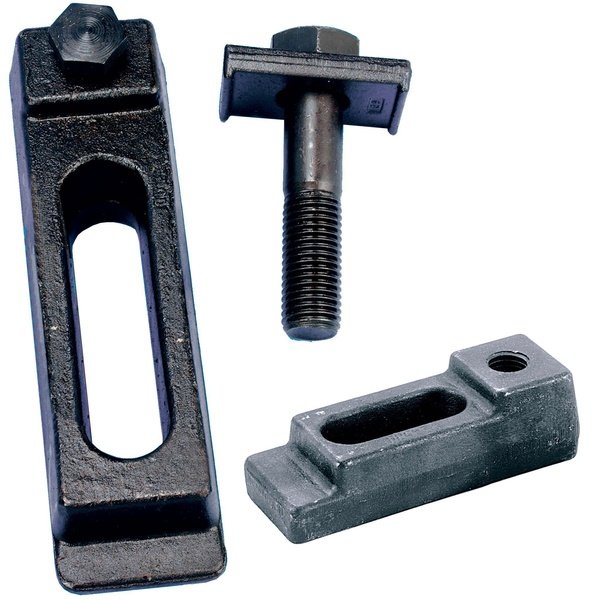

Forged Mould clamp sets Including: Clamp, Adjusting Screw, Forged washer and (optional) bolt

  • Rust and corrosion resistant, black oxide or zinc finish
  • Stronger and longer-lasting than machined clamps
  • Forged, hi tensile hardened steel
  • Forged to our design and specification

108mm and 133mm Length clamps for 12mm, 16mm and 20mm bolts
178mm and 240mm Length clamps for 16mm, 20mm and 24mm bolts
305mm Length clamps for 24mm and 30mm bolts

length for bolt Bolt Comments Part no Price £ Quantity
108 12mm - AC0FC clamp, WF1 no-turn washer, AS0 Adjusting Screw ACOA 25.51
108 12mm M12x65 AC0FC clamp, WF1 no-turn washer, AS0 Adjusting Screw ACOB 26.06
108 12mm M12x90 AC0FC clamp, WF1 no-turn washer, AS0 Adjusting Screw ACOC 26.51
133 16mm - AC2FC clamp, WF2 no-turn washer, AS1 Adjusting Screw AC1FCA 34.40
133 16mm M16x90mm AC2FC clamp, WF2 no-turn washer, AS1 Adjusting Screw AC1FCB 35.55
133 16mm M16x110mm AC2FC clamp, WF2 no-turn washer, AS1 Adjusting Screw AC1FCC 35.95
133 20mm - AC2FC clamp, WF3 no-turn washer, AS1 Adjusting Screw AC2FCA 34.40
133 20mm M20x90mm AC2FC clamp, WF3 no-turn washer, AS1 Adjusting Screw AC2FCB 36.55
133 20mm M20x110mm AC2FC clamp, WF3 no-turn washer, AS1 Adjusting Screw AC2FCC 36.85
178 16mm - AC4FC clamp, WF2 no-turn washer, AS1 Adjusting Screw AC3FCA 36.57
178 16mm M16x90mm AC4FC clamp, WF2 no-turn washer, AS1 Adjusting Screw AC3FCB 37.72
178 16mm M16x110mm AC4FC clamp, WF2 no-turn washer, AS1 Adjusting Screw AC3FCC 38.12
178 20mm - AC4FC clamp, WF3 no-turn washer, AS1 Adjusting Screw AC4FCA 36.57
178 20mm M20x90mm AC4FC clamp, WF3 no-turn washer, AS1 Adjusting Screw AC4FCB 38.72
178 20mm M20x110mm AC4FC clamp, WF3 no-turn washer, AS1 Adjusting Screw AC4FCC 39.02
178 24mm - AC5FC clamp, WF4 no-turn washer, AS2 Adjusting Screw AC5FCA 55.71
178 24mm M24x110mm AC5FC clamp, WF4 no-turn washer, AS2 Adjusting Screw AC5FCB 59.02
178 24mm M24x140mm AC5FC clamp, WF4 no-turn washer, AS2 Adjusting Screw AC5FCC 60.31
240 24mm - AC9FC clamp, WF4 no-turn washer, AS2 Adjusting Screw AC9FCA 57.35
240 24mm M24x110mm AC9FC clamp, WF4 no-turn washer, AS2 Adjusting Screw AC9FCB 60.66
240 24mm M24x150mm AC9FC clamp, WF4 no-turn washer, AS2 Adjusting Screw AC9FCC 62.10
