DME socket couplings with Male Thread

DME socket couplings with Male Thread

£3.80 - £30.53
£3.80
£3.80 - £30.53
£3.80
Description

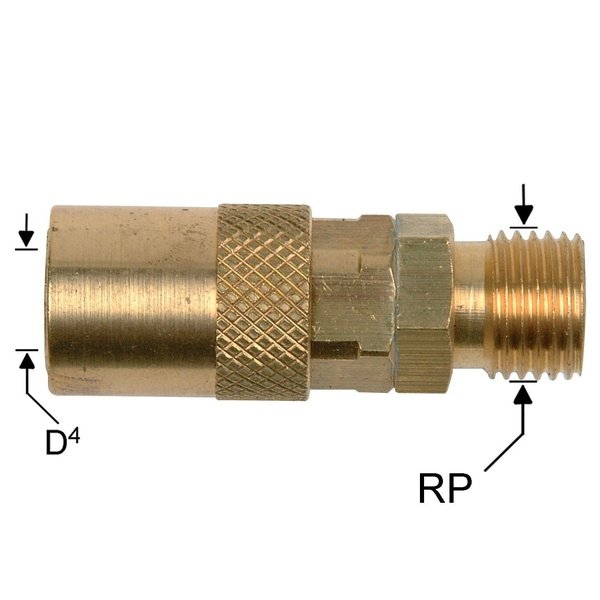

DME compatible quick release water connector couplings

  • Flow-through or Valved shut-off design
  • High quality brass construction water connector
  • Stainless ball-bearing and spring mechanism
  • Replaceable seals
  • Select series (flow rate):

200 series (9.5mm O.D. male plug)

300 series (13.5mm O.D. male plug

500 series (19.5mm O.D. male plug)

Series Thread Valved Comments Part no Price £ Quantity
200 (6) 1/8" BSP No Unvalved D4 = 9mm MF204-18 3.80

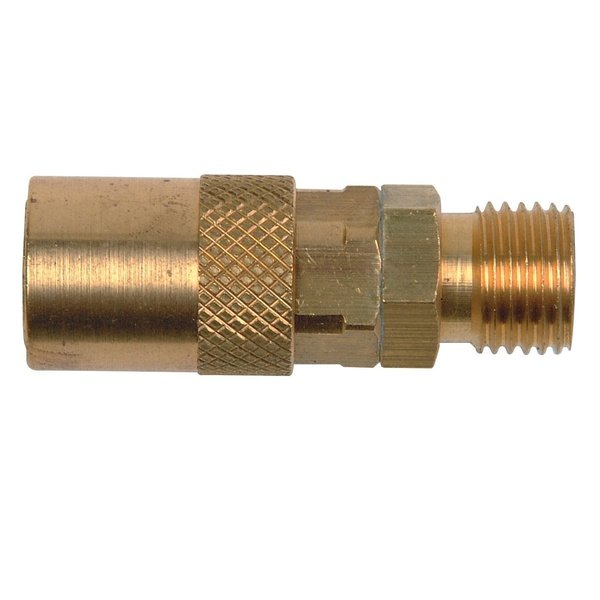

200 (6) 1/8" BSP Yes Valved D4 = 9mm MF204-18V 5.52
200 (6) 1/4" BSP No Unvalved D4 = 9mm MF204-14 3.80
200 (6) 1/4" BSP Yes Valved D4 = 9mm MF204-14V 9.02
200 (6) 3/8" BSP No Unvalved D4 = 9mm MF204-38 7.10
200 (6) 3/8" BSP Yes Valved D4 = 9mm MF204-38V 9.02
200 (6) 14x1.5mm No Unvalved D4 = 9mm MF204-15 3.80
300 (9) 1/4" BSP No Unvalved D4 = 13mm MF308-14 6.15
300 (9) 1/4" BSP Yes Valved D4 = 13mm MF308-14V 7.33
300 (9) 3/8" BSP No Unvalved D4 = 13mm MF306-38 6.15
300 (9) 3/8" BSP Yes Valved D4 = 13mm MF306-38V 7.35
300 (9) 1/2" BSP No Unvalved D4 = 13mm MF306-12 6.55
300 (9) 1/2" BSP Yes Valved D4 = 13mm MF306-12V 7.57
300 (9) 16x1.5mm No Unvalved D4 = 13mm MF308-16 5.52
300 (9) 16x1.5mm Yes Valved D4 = 13mm MF308-16V 7.19
500 (16) 1/2" BSP No Unvalved D4 = 20mm MF506-12 22.13
500 (16) 1/2" BSP Yes Valved D4 = 20mm MF506-12V 30.53
Series
Thread
Valved
200 (6)
1/8" BSP
No
MF204-18
£3.80
200 (6)
1/8" BSP
Yes
MF204-18V
£5.52
200 (6)
1/4" BSP
No
MF204-14
£3.80
200 (6)
1/4" BSP
Yes
MF204-14V
£9.02
200 (6)
3/8" BSP
No
MF204-38
£7.10
200 (6)
3/8" BSP
Yes
MF204-38V
£9.02
200 (6)
14x1.5mm
No
MF204-15
£3.80
300 (9)
1/4" BSP
No
MF308-14
£6.15
300 (9)
1/4" BSP
Yes
MF308-14V
£7.33
300 (9)
3/8" BSP
No
MF306-38
£6.15
300 (9)
3/8" BSP
Yes
MF306-38V
£7.35
300 (9)
1/2" BSP
No
MF306-12
£6.55
300 (9)
1/2" BSP
Yes
MF306-12V
£7.57
300 (9)
16x1.5mm
No
MF308-16
£5.52
300 (9)
16x1.5mm
Yes
MF308-16V
£7.19
500 (16)
1/2" BSP
No
MF506-12
£22.13
500 (16)
1/2" BSP
Yes
MF506-12V
£30.53
200 (6) 1/8" BSP No MF204-18 3.80
200 (6) 1/8" BSP Yes MF204-18V 5.52
200 (6) 1/4" BSP No MF204-14 3.80
200 (6) 1/4" BSP Yes MF204-14V 9.02
200 (6) 3/8" BSP No MF204-38 7.10
200 (6) 3/8" BSP Yes MF204-38V 9.02
200 (6) 14x1.5mm No MF204-15 3.80
300 (9) 1/4" BSP No MF308-14 6.15
300 (9) 1/4" BSP Yes MF308-14V 7.33
300 (9) 3/8" BSP No MF306-38 6.15
300 (9) 3/8" BSP Yes MF306-38V 7.35
300 (9) 1/2" BSP No MF306-12 6.55
300 (9) 1/2" BSP Yes MF306-12V 7.57
300 (9) 16x1.5mm No MF308-16 5.52
300 (9) 16x1.5mm Yes MF308-16V 7.19
500 (16) 1/2" BSP No MF506-12 22.13
500 (16) 1/2" BSP Yes MF506-12V 30.53
Additional Details
Series Thread Valved
200 (6) 1/8" BSP No
200 (6) 1/8" BSP Yes
200 (6) 1/4" BSP No
200 (6) 1/4" BSP Yes
200 (6) 3/8" BSP No
200 (6) 3/8" BSP Yes
200 (6) 14x1.5mm No
300 (9) 1/4" BSP No
300 (9) 1/4" BSP Yes
300 (9) 3/8" BSP No
300 (9) 3/8" BSP Yes
300 (9) 1/2" BSP No
300 (9) 1/2" BSP Yes
300 (9) 16x1.5mm No
300 (9) 16x1.5mm Yes
500 (16) 1/2" BSP No
500 (16) 1/2" BSP Yes
