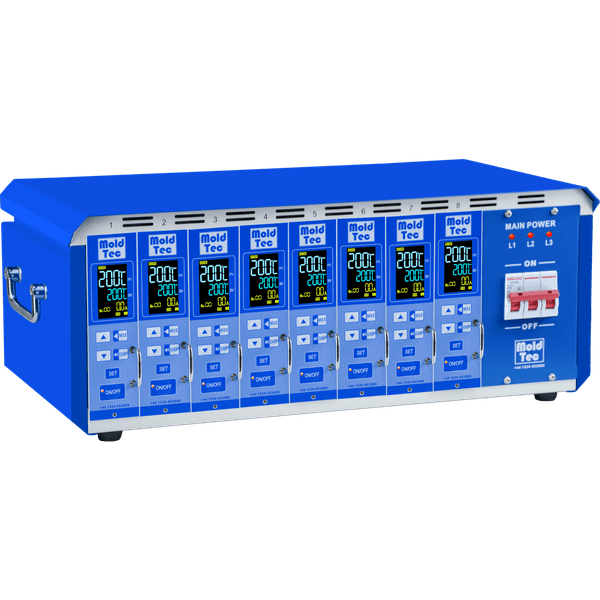

Mainframe Single Zone Cards & Combi Power/TC Cable

Mainframe Single Zone Cards & Combi Power/TC Cable

£6.65 - £875.00
£245.00
£6.65 - £875.00
£245.00
Description

Choose either LED or LCD cards and 3 metre or 6 metre Power and Thermocouple Cables.
Use blanking plate (HRTCBP) to build mainframe with reduced number of zones and select number of cards accordingly.

Zones Input Power Switch Output Connector Cabinet Length Mainframe LED Display Card LCD Display Card 3 Metre Combination Cable 6 Metre Combination Cable
2 40A 240V 1ph 2 x 5 Pin Combi Cable 185mm HRTC2 HRTCB x 2 HRTCG x 2 MPTC1J03 x 2 MPTC1J06 x 2
4 63A 415V 3ph 16 Pin Combi Cable 310mm HRTC4 HRTCB x 4 HRTCG x 4 MPTC4J03 x 1 MPTC4J06 x 1
6 63A 415V 3ph 24 Pin Combi Cable 410mm HRTC6 HRTCB x 6 HRTCG x 6 MPTC6J03 x 1 MPTC6J06 x 1
8 63A 415V 3ph 2 x 16 Pin Combi Cable 510mm HRTC8 HRTCB x 8 HRTCG x 8 MPTC4JO3 x 2 MPTC4J06 x 2
12 63A 415V 3ph 2 x 24 Pin Combi Cable 710mm HRTC12 HRTCB x 12 HRTCG x 12 MPTC6J06 x 2 MPTC6J06 x 2
Description Comments Part no Price £ Quantity
2 Zone Mainframe Assembly HRTC2 245.00
4 Zone Mainframe Assembly HRTC4 362.00
6 Zone Mainframe Assembly HRTC6 498.00
8 Zone Mainframe Assembly HRTC8 592.00
12 Zone Mainframe Assembly HRTC12 875.00
LED Display Single Zone Card HRTCB 92.50
LCD Display Single Zone Card HRTCG 124.03
5 Pin Combination Cable 3m 2 x 5 Pin Combination Cable MPTC1J03 79.89
5 Pin Combination Cable 6m 2 x 5 Pin Combination Cable MPTC1J06 108.90
16 Pin Combination Cable 3m 16 Pin Combination Cable MPTC4J03 166.62
16 Pin Combination Cable 6m MPTC4J06 210.06
24 Pin Combination Cable 3m 24 Pin Combination Cable MPTC6J03 203.14
24 Pin Combination Cable 6m 24 Pin Combination Cable MPTC6J06 288.54
Blanking Plate HRTCBP 6.65
